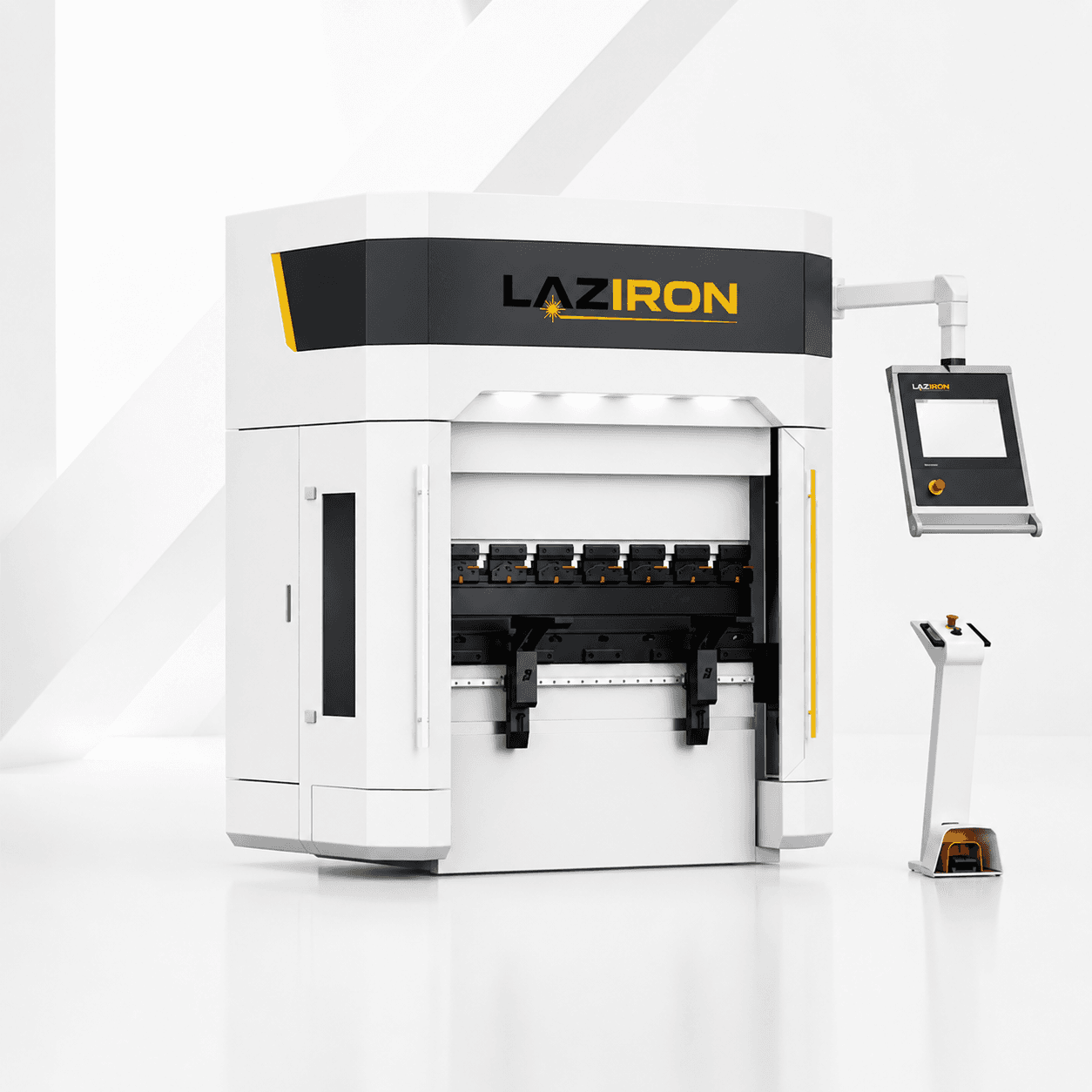

LAZIRON EPB Electric CNC Sheet Metal Press Brake

The LAZIRON electric CNC sheet metal press brake completely eliminates the classic hydraulic system, replacing it with a servomotor directly coupled to the bending ram. The result: superior accuracy, energy consumption reduced by 60-70% and zero oil leaks, a clean solution for modern workshops.

With a bending force between 40 and 160 tonnes, a usable length of 1600-3200 mm and CNC control with 4-6 axes, every LAZIRON EPB electric CNC sheet metal press brake delivers premium-level industrial quality at an investment that metal furniture workshops, electrical equipment factories and HVAC panel manufacturers can afford.

What makes the LAZIRON EPB an electric CNC sheet metal press brake built for real production

The LAZIRON EPB electric CNC sheet metal press brake combines in a single system the advantages that matter on the production line: repeatable accuracy, parameter automation, predictable operating costs and a long service life for critical components.

• 100% electric servomotor drive — eliminates the classic hydraulic system, reducing energy consumption by 60-70% and removing the risk of oil leaks in the workshop.
• Bending accuracy of ±0.01 mm — guaranteed by the direct servomotor-ram coupling, without the position losses typical of worn hydraulic systems.
• CNC control with 4-6 NC axes — depending on the model: Y1, Y2, X, R, plus the optional Z1 and Z2 axes for automatic side gauges, complete programming of any complex part.
• 40-160 tonnes force, 1600-3200 mm length — configurable in standard steps for applications ranging from light metal furniture to heavy industrial panels.
• Crowning compensation system — automatically adjusts the table curvature under pressure, maintaining perfect parallelism between ram and die along the entire length.
• DA-66T or Esa S630 control system — touch panel with 2D/3D graphical programming, collision simulation, tool library and direct import from DXF.
• Laser-beam safety system — ESA-Lazer Safe or Pilz: detects the operator's fingers under the ram and slows the movement for instant stopping, EN 12622 compliance.

Technical specifications — LAZIRON EPB electric CNC sheet metal press brake

This LAZIRON electric CNC sheet metal press brake is available in standardized configurations, the choice being made according to the application mix and the workshop's monthly production volume.

Industries that use a LAZIRON electric CNC sheet metal press brake

A LAZIRON electric CNC sheet metal press brake is the choice for workshops that want to eliminate the recurring costs of hydraulic oil, pump maintenance and periodic leaks, all eliminated through 100% electric drive.

Factories making metal furniture for offices and commercial equipment use a single LAZIRON EPB electric CNC sheet metal press brake to bend 304 stainless steel panels with strict finishing requirements, benefiting from the ±0.01 mm accuracy that eliminates scrap. Manufacturers of medical and electrical equipment (enclosures for switchboards, server cabinets, panels for sterilization devices) recover the investment by reducing energy consumption in 24-36 months.

The HVAC industry (ductwork panels, louvres, fan coil units), industrial hardware workshops and urban furniture manufacturers benefit from silent operation and the absence of oil leaks. Sheet metal bending subcontractors with a portfolio of clients in cleanliness-sensitive industries (food, pharma) use the electric CNC sheet metal press brake to pass client audits without investing in additional isolation.

Materials compatible with a LAZIRON electric CNC sheet metal press brake

With force configurable between 40 and 160 tonnes, every LAZIRON LAZIRON EPB electric CNC sheet metal press brake covers the usual range of sheet metal for light and medium metal fabrication workshops.

The crowning compensation system and the precise servomotor control allow high-quality bends even on hard materials (stainless steel, high-grade aluminium) without scrap.

Typical performance per material

• Carbon steel — max. thickness (with 160 t): 8 mm (length 3200 mm)
• Stainless steel 304/316: 6 mm
• Aluminium: 10 mm
• Galvanized sheet: 5 mm

How the LAZIRON EPB model works

The workflow of a LAZIRON LAZIRON EPB electric CNC sheet metal press brake is built for fast cycles and ergonomic operation, with minimal intervention from the operator.

1. The operator loads the bending program into the DA-66T system directly from DXF or library.
2. The back gauge positions itself automatically on the Y1, Y2, X coordinates calculated by the software.
3. The sheet is positioned manually on the die, supported by the auto-positioned gauges.
4. The Lazer Safe safety system checks the work zone and allows the cycle to start.
5. The ram descends in an approach-work-retraction sequence with independently controlled speeds.
6. At the end, the system returns to zero and the gauges adjust for the next bend in the program.

For integration with other equipment in your workshop, the machine connects natively to the other LAZIRON equipment through a common MES.

Frequently asked questions about the electric CNC sheet metal press brake

Why should I choose an electric CNC sheet metal press brake instead of a hydraulic one?

Three main reasons: energy consumption reduced by 60-70% (annual operating cost lower by 800-1500 EUR), zero oil leaks and zero oil replacement costs, plus ±0.01 mm accuracy guaranteed consistently without degradation over time. For workshops with continuous production over 6-8 hours/day, the LAZIRON EPB electric CNC sheet metal press brake recovers the price difference compared to hydraulic in 18-30 months.

Are there tonnage limitations compared to a hydraulic press brake?

Efficient electric configurations go up to 160 tonnes. For forces above 200 tonnes, the hydraulic system remains competitive in terms of cost-performance ratio (see the LAZIRON HPB, TPBS models). For 80% of the usual applications in metal fabrication and industrial furniture, under 160 tonnes, the electric CNC sheet metal press brake is clearly superior.

Which CNC control is better, DA-66T or Esa S630?

The DA-66T (Delem) is the most widespread, with the best compatibility with external CAD/CAM software and consolidated local technical support. The Esa S630 (Italian) has a more intuitive interface for beginner operators and superior 3D graphics on simulation. For workshops with external IT integrators, we recommend the DA-66T. For workshops with junior operators, the S630.

How much do I save annually on energy?

For a 100 tonne × 2600 mm press brake working 8 hours/day × 20 days/month: hydraulic consumption ~7-10 kWh/h vs electric ~2-3 kWh/h. Saving 5-7 kWh/h × 160 h/month = 800-1100 kWh/month. At 0.8-1 RON/kWh, the annual saving is 8,000-13,000 RON (1,600-2,600 EUR) from energy alone, not including the saving on oil and maintenance.

What delivery, installation and training are included?

DAP delivery to your premises. Installation (mechanical assembly, electrical connection, calibration), commissioning and operator training (3-5 days) are optional contractable services. The online pre-delivery inspection is free for any LAZIRON EPB electric CNC sheet metal press brake, with a live test on your reference material.

ROI calculation for a LAZIRON electric CNC sheet metal press brake

The decision to invest in an electric CNC sheet metal press brake is not made on the basis of technical specifications alone, what matters is how the equipment translates into real monthly cash-flow figures for your workshop.

For workshops that currently subcontract the equivalent operations at 2026 Romanian market prices, bringing them in-house with a LAZIRON electric CNC sheet metal press brake reduces the effective cost per operation by 50-70%. At a typical monthly volume operated in-house instead of subcontracted, the investment is recovered in 18-30 months under current Romanian market conditions.

The additional margin comes from three directions: the saving compared to subcontracting, offering services to external local clients at market prices, and reducing delivery times to end clients by 40-60%, which allows premium prices on urgent orders or those with short deadlines.

Why choose LAZIRON for an electric CNC sheet metal press brake

LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious workshop can afford, not just the large factories with multi-million euro budgets for CAPEX investments.

• Affordable price for premium electric drive — the critical components (servomotor, DA/Esa control, Lazer Safe system) are those used by premium European manufacturers, but the LAZIRON package costs 35-45% less.
• 120-month warranty — for the machine body and critical mechanical components, according to the configuration, contract and operating conditions.
• Free 24/7 technical support — throughout the equipment's lifetime, with direct access to LAZIRON engineers for program optimization.
• Free pre-delivery inspection — with a live test on your standard dies and a complete acceptance report.
• European funds compatibility — meets the requirements of PNRR, ERDF and national funds for digitalization and energy efficiency projects.
• Standards-compliant components — the servomotors and controllers comply with the EN 12622 specifications of the European leaders on the world market.

The critical components in the standard configuration comply with the reliability specifications established by the laser industry leaders, with a declared lifetime of over 100,000 hours of operation on the fiber source.

See the entire LAZIRON range of industrial equipment to compare the models and request a personalized offer.

The LAZIRON EPB electric CNC sheet metal press brake turns the workshop's key operations into a real competitive advantage: premium-level quality, sustained productivity and an affordable investment for any workshop that wants to grow without doubling its fixed cost structure.
