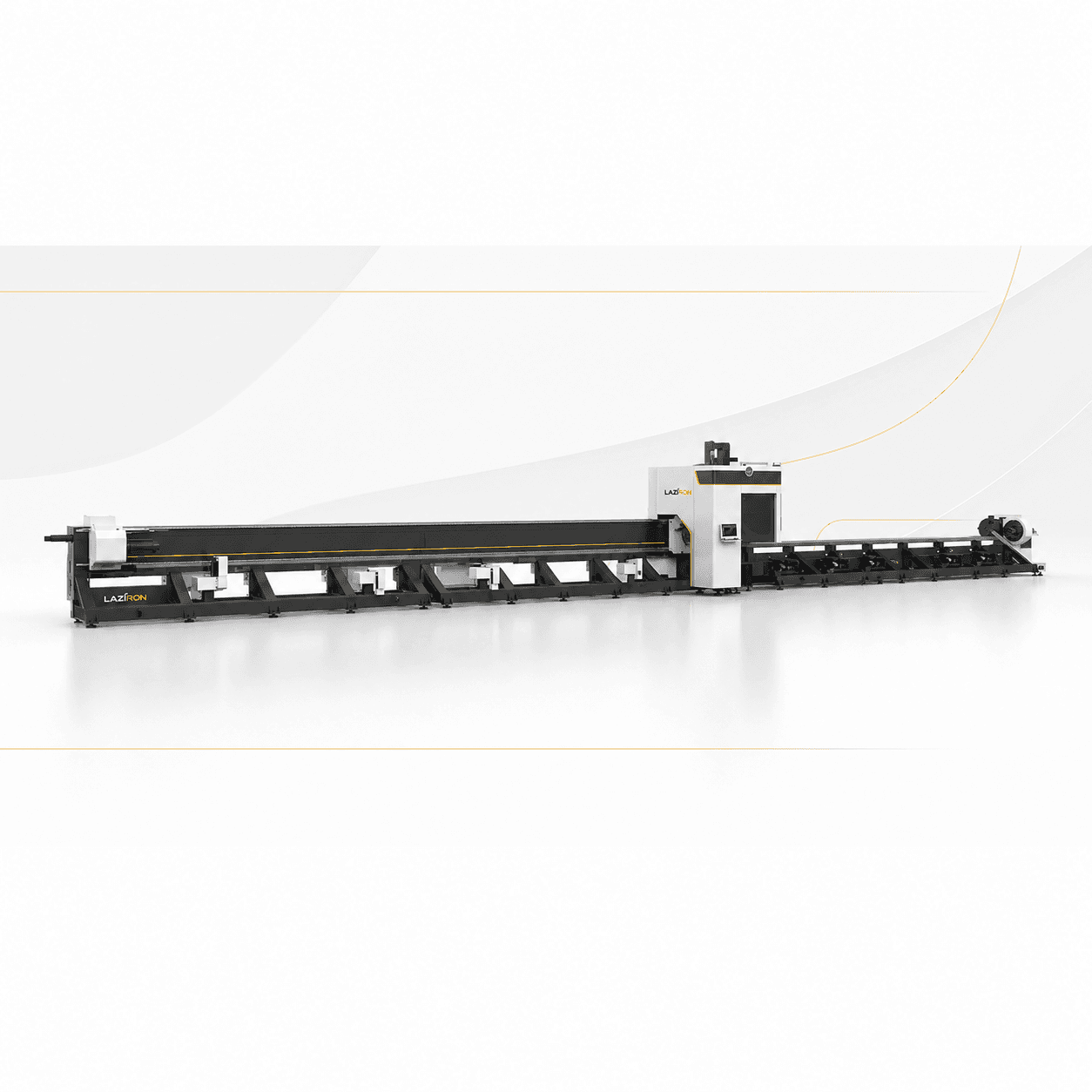

LAZIRON T3L Automatic Three-Chuck Laser Tube Machine

Automatic three-chuck laser tube machine LAZIRON combines the advantage of 3 synchronized chucks with the automatic loading system from a side magazine, making it the most productive configuration in the LAZIRON tube range for workshops with high volumes and a mix of long tubes.

With a fiber laser source between 1.5 and 6 kW, a side magazine for 10-15 pre-stocked tubes and processing capacity up to Ø350 mm with lengths of 12000 mm, each LAZIRON T3L automatic three-chuck laser tube machine is the optimal configuration for factories with continuous production on structural profiles and for subcontractors with a large portfolio of recurring clients.

What makes the LAZIRON T3L an automatic three-chuck laser tube machine built for real production

The LAZIRON T3L automatic three-chuck laser tube machine brings together in a single system the advantages that matter on the tube production line: repeatable precision, parameter automation, predictable operating costs and a long service life for critical components.

• System with 3 chucks plus automatic magazine — eliminates both axial deflection on long tubes and the idle time of manual loading, ideal for large batches of identical parts.
• Fiber laser power 1.5–6 kW — covers the entire industrial range, from light fabrications to heavy structural profiles with 14 mm walls.
• Tube capacity Ø20–Ø350 mm with lengths of 12000 mm — allows cutting the full raw bar, eliminating pre-cutting and optimizing material consumption.
• Side magazine for 10-15 tubes — synchronized with Cypcut, it feeds the machine automatically, delivering continuous productivity on the night shift without direct supervision.
• Dynamic central chuck — moves in sync with the cutting head, eliminating deflection on tubes over 8 m and torsion on thin walls.
• RayTools head with capacitive autofocus — constant edge quality on continuous production, with automatic compensation for dimensional variations between tubes.
• 24/7 productivity on long profiles — eliminates 60-90 minutes of idle time per shift, translating into 8-12 additional tubes processed per day compared with equivalent manual operation.

Technical specifications — LAZIRON T3L automatic three-chuck laser tube machine

This LAZIRON automatic three-chuck laser tube machine is available in standardized configurations, with the choice made according to the mix of tubes processed and the workshop's monthly production volume.

Industries that use a LAZIRON automatic three-chuck laser tube machine

A LAZIRON automatic three-chuck laser tube machine is chosen by the most demanding industrial environments: factories with high volumes on structural profiles, serial manufacturers of urban furniture and laser cutting subcontractors with a stable portfolio of recurring clients.

The metal construction industry for agricultural halls and large-scale greenhouses uses a single LAZIRON T3L automatic three-chuck laser tube machine to process 60-100 rectangular 150×150 mm profiles with lengths of 8-10 m daily, in batches that would otherwise require 2-3 shifts on an equivalent manual machine.

Manufacturers of structures for solar parks, urban furniture (benches, tubular advertising panels), outdoor fitness equipment and components for small boats recover the investment in the LAZIRON T3L automatic-loading laser tube machine in 12-20 months at typical volumes above 6-8 tonnes of profiles per month. Operating in 2-3 shifts without continuous staff reduces labor costs by 40-60%.

Materials compatible with a LAZIRON automatic three-chuck laser tube machine

With fiber laser sources between 1.5 and 6 kW, each LAZIRON LAZIRON T3L automatic three-chuck laser tube machine processes the entire industrial range of metal tubes and profiles for high-volume production.

The automatic coarse + fine detection system compensates for dimensional variations between the tubes in the magazine, essential for batches with material from different lots or suppliers.

Maximum wall thickness per material (in the maximum configuration)

• Carbon steel (max. wall thickness): 14 mm
• Stainless steel 304/316: 10 mm
• Aluminum: 8 mm
• Heavy structural tubes (S235, S355, S420): up to 14 mm wall

How the LAZIRON T3L model works

The workflow of a LAZIRON LAZIRON T3L automatic three-chuck laser tube machine is built for total autonomy: the operator only intervenes when loading the magazine and emptying the pallet of finished parts.

1. The operator loads the side magazine with 10-15 raw tubes using a crane or forklift.
2. The automatic system takes the first tube from the magazine and transfers it into the 3 synchronized chucks.
3. The coarse + fine profile detection sensor scans the tube and updates the Cypcut parameters.
4. The RayTools head runs the program with continuous autofocus, while the dynamic central chuck synchronizes.
5. At the end, the parts fall onto the discharge conveyor and the residual tube is ejected automatically.
6. The system takes the next tube from the magazine in under 90 seconds, repeating the cycle without human intervention.

For integration with other metal processing equipment, the machine connects natively to tube bending machines and to the other LAZIRON lines through a shared MES.

Frequently asked questions about the automatic three-chuck laser tube machine

When does the LAZIRON T3L automatic-loading laser tube machine justify the investment compared with the T2L with 2 chucks?

Three criteria: if you frequently process tubes over 6 m (T3L covers 12 m vs 6.5 m on the T2L), if you work with very thin walls on large diameters, or if precision requirements are below ±0.05 mm over the full length. For workshops with production on long structural profiles, the T3L offers double the productivity of the T2L and clearly superior quality on demanding parts.

How much do I save with the T3L compared with an equivalent manual configuration?

On 2 shifts per day with 8-10 m structural profiles, eliminating manual loading time brings 16-24 additional tubes processed per day. At an average cost of 8-12 EUR per tube, that means 130-290 EUR per day or 40,000-85,000 EUR per year. The price difference compared with an equivalent manual T3 model is paid off in 10-16 months.

Can I operate the LAZIRON T3L automatic-loading laser tube machine on the night shift without staff?

Technically yes: the anomaly detection sensors stop the machine and send a Cypcut cloud alert if a problem occurs (jammed tube, missing material, laser head error). In practice, most integrators use a dedicated operator to supervise 1-2 machines, achieving double the output of traditional manual operation.

How large is the tube magazine?

The standard configuration supports 10-15 tubes of Ø100-Ø200 mm with an 8 m length, or 6-8 tubes of Ø300 mm. For workshops with continuous production, a second side magazine can optionally be added, doubling the capacity. At typical consumption of 1 tube every 12-18 minutes, a full magazine provides 2-4 hours of operation without reloading.

What space and foundation conditions do I need?

For the configuration with a 12000 mm tube: a minimum hall of 20 × 6 m (machine + magazine + discharge area + crane space). Clear height: 4.5 m. Reinforced concrete foundation at least 250 mm thick. Three-phase 380 V voltage with absorbed power of 30-60 kVA depending on the laser source.

ROI calculation for a LAZIRON automatic three-chuck laser tube machine

The decision to invest in an automatic three-chuck laser tube machine is not made on the basis of technical specifications alone: what matters is how the equipment translates into real monthly cash-flow figures for your tube processing workshop.

For workshops that currently subcontract laser cutting of tubes at 1.0-1.5 EUR per linear meter cut plus material cost, bringing it in-house with a LAZIRON automatic three-chuck laser tube machine reduces the effective cost per processed meter by 60-75%. At a monthly volume of 800-1500 linear meters processed in-house instead of subcontracting, the investment is recovered in 18-30 months under current market conditions in Romania.

The additional margin comes from three directions: savings versus subcontracting, offering cutting services to external local clients (1.2-1.8 EUR per meter at the Romanian market level in 2026) and reducing delivery times to end clients by 40-60%, which allows premium prices on urgent orders or those with short deadlines.

Why choose LAZIRON for an automatic three-chuck laser tube machine

LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious tube processing workshop can sustain, not just large factories with multi-million euro budgets for CAPEX investments.

• Affordable price for the most complete tube configuration — the components (laser source, 3 chucks, automatic magazine, RayTools head) are those used by premium manufacturers, but the LAZIRON package costs 35-45% less than European alternatives.
• 120-month warranty — for the machine body and critical mechanical components, according to the configuration, contract and operating conditions.
• Free 24/7 technical support — essential for a machine intended for autonomous 24/7 production, where rapid diagnosis directly reduces downtime hours.
• Free pre-delivery inspection — with a full test of the automatic loading cycle and 3-chuck synchronization on your material.
• European funds compatibility — meets the requirements of NRRP, ERDF and national industrial digitalization funds.
• Standards-compliant components — the fiber source meets the reliability specifications of the world market's leading manufacturers.

The fiber laser source in the standard configuration meets the reliability specifications set by the laser industry leaders, with a declared lifetime of over 100,000 operating hours.

See the entire LAZIRON range of equipment for processing metal tubes to compare models and request a personalized offer.

The LAZIRON T3L automatic three-chuck laser tube machine turns tube cutting into a real competitive advantage: premium-grade precision, sustained productivity and an affordable investment for any workshop that wants to grow without doubling its fixed-cost structure.
