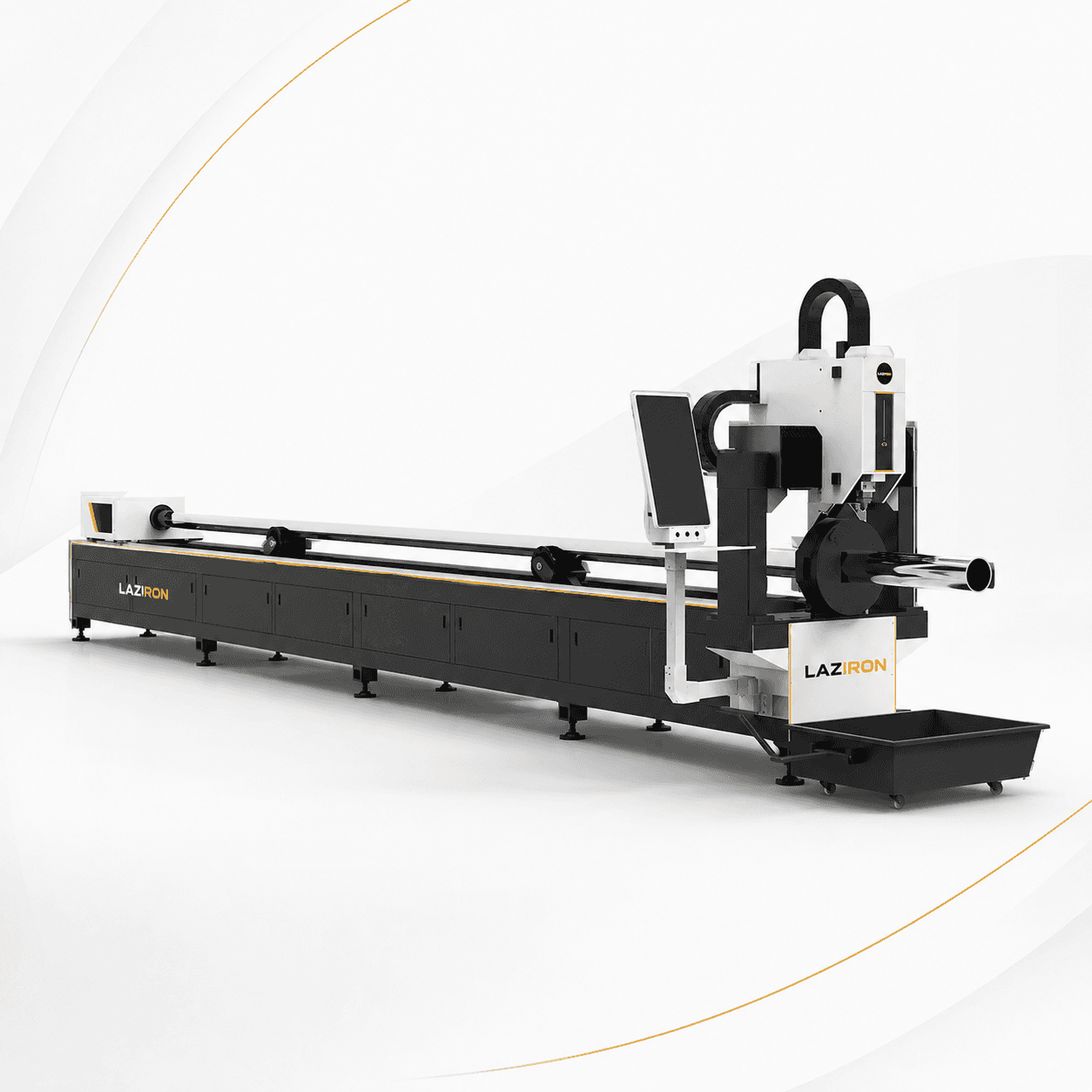

LAZIRON TS Economical Tube Laser Cutting Machine

Economical tube laser cutting machine LAZIRON is the entry point of the LAZIRON range for workshops that want to bring metal tube cutting in-house without investing in advanced 3- or 4-chuck configurations. The TS model with 2 chucks covers 80% of the usual tube-cutting requirements in metal fabrication.

With a fiber laser source between 1.5 and 3 kW and the capacity to process tubes up to 230 mm in diameter, every economical tube laser cutting machine LAZIRON TS offers unbeatable value for money: the same premium components (Cypcut, RayTools, S&A) used on the higher-end models, but at the lowest entry price in the LAZIRON T range.

What makes the LAZIRON TS an economical tube laser cutting machine built for real production

The LAZIRON TS economical tube laser cutting machine combines in a single system the advantages that matter on the tube production line: repeatable precision, parameter automation, predictable operating costs and a long service life for critical components.

• System with 2 pneumatic chucks — ensures secure clamping of round, square, rectangular tubes and U or L profiles without manually removing the jaws.
• Fiber laser power 1.5–3 kW — optimized for typical tube diameters (Ø20-Ø230 mm) and wall thicknesses of 1-6 mm — the sub-segment with the highest volume in metal fabrication workshops.
• Maximum tube length 6000 mm — covers the standard bars delivered from stock, eliminating the extra operation of pre-cutting to an intermediate length.
• RayTools head with capacitive autofocus — adjusts the focus automatically for each wall thickness, eliminating manual setting and keeping edge quality consistent.
• Cypcut software with tube library — includes parametric models for typical contours (joint reliefs, bolting holes, slots) — the operator selects from the library rather than drawing from scratch.
• Manual intermediate support system — the rollers with adjustable positioning support the long tube along the entire travel, preventing axial deviation on small diameters with thin walls.
• Side protection panels — meet the minimum safety requirements with a clearly defined access zone for the operator.

Technical specifications — LAZIRON TS economical tube laser cutting machine

This economical tube laser cutting machine LAZIRON is available in standardized configurations, the choice being made according to the mix of tubes processed and the workshop's monthly production volume.

Industries that use a LAZIRON economical tube laser cutting machine

A LAZIRON economical tube laser cutting machine is the natural choice for local metal fabricators, railing and gate workshops, small metal furniture factories and subcontractors entering tube laser cutting for the first time.

Railing and metal gate workshops cut, with a single LAZIRON TS economical tube laser cutting machine, the typical range of round tubes Ø30-Ø60 mm and square profiles 30×30-50×50, with exact reliefs for welded joints. A monthly volume of 1-2 tonnes processed in-house, instead of subcontracting, justifies the investment in 18-28 months.

Metal furniture manufacturers (industrial shelving, lighting supports, structures for exhibition stands), hardware workshops and small sports-equipment factories use an economical tube laser cutting machine for maximum flexibility: they can accept small orders with full customization, without the set-up cost of an expensive machine.

Materials compatible with a LAZIRON economical tube laser cutting machine

With a fiber laser source between 1.5 and 3 kW, every LAZIRON LAZIRON TS economical tube laser cutting machine processes the standard metals used in fabrication and furniture workshops.

The RayTools head with capacitive autofocus switches parameters automatically from Cypcut, and the pre-programmed tube library lets the operator load standard parts without editing in CAD.

Maximum wall thickness per material (in the maximum configuration)

• Carbon steel (max. wall thickness): 6 mm
• Stainless steel 304/316: 4 mm
• Aluminum: 5 mm
• Standard profiles (round, square, rectangular, U, L): all

How the LAZIRON TS model works

The workflow of a LAZIRON LAZIRON TS economical tube laser cutting machine is simple and optimized for the short cycles typical of small and medium workshops.

1. The operator manually loads the tube through the main chuck, resting on the rollers of the intermediate support.
2. The pneumatic chuck automatically clamps the tube and reports the zero position to the Cypcut system.
3. The operator selects the program from the library (or loads a custom DXF) and starts cutting with a single click.
4. The RayTools head follows the programmed contour with continuous autofocus, compensating for any dimensional variations.
5. During cutting, the chuck rotates the tube in sync with the movement of the head on the Z axis.
6. At the end, the finished parts fall onto the discharge conveyor or the unloading pallet, and the remaining tube is removed manually.

For integration with other metal-processing equipment, the machine connects natively to tube bending machines and to the other LAZIRON lines through a common MES.

Frequently asked questions about the economical tube laser cutting machine

What is the difference between a LAZIRON TS economical tube laser cutting machine and a standard T2 model?

The LAZIRON TS has 2 chucks and a manual intermediate support with rollers — ideal for small-to-medium volumes and common diameters Ø20-Ø230 mm. The T2 adds a motorized intermediate support and extended capacity up to Ø250-Ø300 mm. For workshops processing under 1.5 tonnes of tube per month, the TS offers the best investment-to-result ratio.

What laser power should I choose for my workshop?

For tubes with a wall under 3 mm, the 1.5 kW source is sufficient and the most energy-efficient. For walls of 3-5 mm and commercial speeds, we recommend 2 kW. The 3 kW source is justified for workshops with a constant volume over 1.5 tonnes/month or for cutting stainless steel with nitrogen at maximum speeds.

How much do I save compared to subcontracting?

The average subcontracting cost in Romania is 1.0-1.5 EUR per linear meter for laser-cut tube, depending on complexity. Bringing it in-house with a LAZIRON TS economical tube laser cutting machine reduces the effective cost to 0.3-0.5 EUR per linear meter, recovering the investment in 20-30 months at typical volumes of 800-1500 linear meters/month.

Can I process asymmetrical profiles (U, L, hexagonal)?

Yes, the standard configuration supports U, L (angle), hexagonal and oval profiles, in addition to round, square and rectangular. Cypcut includes a parametric library for all these shapes, and the chuck with 4 independent jaws adjusts automatically to the profile selected in the program.

What delivery, installation and training are included?

DAP delivery to the buyer's premises. Installation, commissioning and operator training (2 days) are optional services available by contract. Pre-delivery online inspection is free for any LAZIRON economical tube laser cutting machine, with a live test on tube made from your reference material.

ROI calculation for a LAZIRON economical tube laser cutting machine

The decision to invest in an economical tube laser cutting machine is not made on the basis of technical specifications alone — what matters is how the equipment translates into real monthly cash-flow figures for your tube-processing workshop.

For workshops currently subcontracting tube laser cutting at 1.0-1.5 EUR per linear meter cut plus material cost, bringing it in-house with a LAZIRON economical tube laser cutting machine reduces the effective cost per processed meter by 60-75%. At a monthly volume of 800-1500 linear meters processed in-house instead of subcontracting, the investment is recovered in 18-30 months under current Romanian market conditions.

The additional margin comes from three directions: the saving compared to subcontracting, offering cutting services to local external clients (1.2-1.8 EUR/m at the Romanian market level in 2026) and reducing delivery times to end clients by 40-60%, which allows premium prices on urgent orders or those with short deadlines.

Why choose LAZIRON for an economical tube laser cutting machine

LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious tube-processing workshop can afford, not just the large factories with multi-million-euro budgets for CAPEX investments.

• The most affordable price in the LAZIRON tube range — the base package costs 35-45% less than European alternatives at the same configuration, keeping the same critical components as the higher-end models.
• 120-month warranty — for the machine body and critical mechanical components, according to the configuration, contract and operating conditions.
• Free 24/7 technical support — throughout the equipment's service life, via online platform and direct access to LAZIRON engineers.
• Free pre-delivery inspection — with a live test on your reference tubes and a complete acceptance report.
• European funding compatibility — meets the requirements of NRRP, ERDF and national industrial digitalization funds for workshops starting their digital transformation.
• Standards-compliant components — the fiber source meets the reliability specifications of the leading manufacturers on the global market.

The fiber laser source in the standard configuration meets the reliability specifications set by the laser industry leaders, with a declared service life of over 100,000 operating hours.

See the entire LAZIRON range of equipment for processing metal tubes to compare models and request a personalized quote.

Economical tube laser cutting machine LAZIRON TS turns tube cutting into a real competitive advantage: premium-level precision, sustained productivity and an affordable investment for any workshop that wants to grow without doubling its fixed-cost structure.
