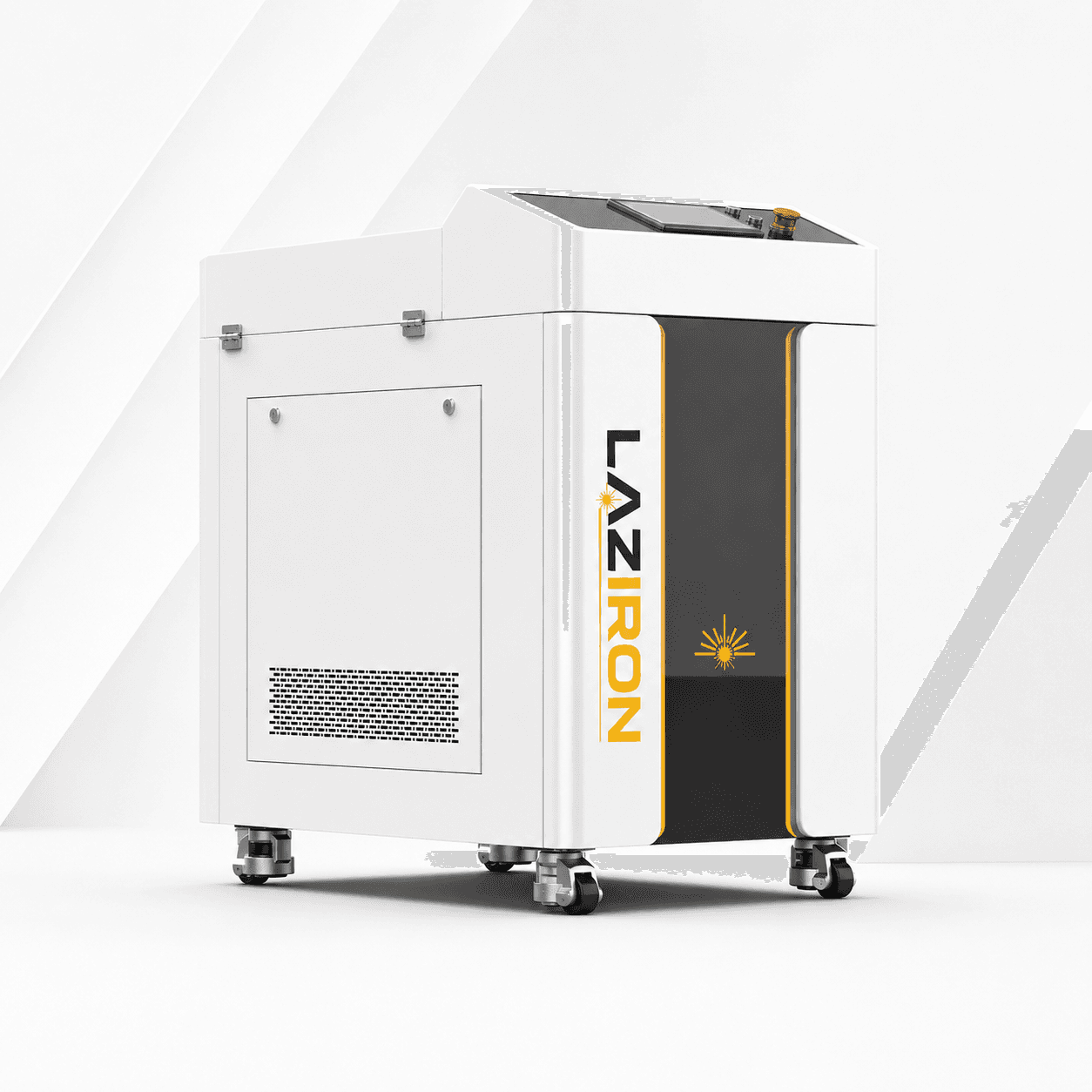

LAZIRON W Portable Laser Welding Machine

Portable laser welding machine LAZIRON eliminates the limitations of classic MIG/TIG technique: welding with minimal distortion, superior penetration, 3 to 5 times higher speed and perfectly clean bead quality even for junior operators. The integrated 3-in-1 system enables welding, cutting and cleaning with the same portable head.

With power between 1000 and 3000 W, a 3-in-1 system (welding + cutting + cleaning) and dedicated chiller cooling, each LAZIRON W portable laser welding machine transforms the investment in industrial welding: a single piece of equipment replaces MIG/TIG plus grinder plus oxide separator, at a price that small and medium metal fabrication workshops can afford.

What makes LAZIRON W a portable laser welding machine built for real production

The LAZIRON W portable laser welding machine concentrates into a single system the advantages that matter on the production line: repeatable precision, parameter automation, predictable operating costs and a long service life for critical components.

• Integrated 3-in-1 system - welds, cuts thin (under 5 mm) and cleans with the same portable head; switching the function is done from the panel in under 10 seconds.
• Fiber power 1000-3000 W - 1000 W for thin furniture sheet (under 3 mm), 1500 W for standard applications (3-6 mm), 2000-3000 W for heavy plate (6-12 mm).
• Welding speed 3-5x faster than TIG - allows junior operators to quickly reach specialist productivity, essential for workshops struggling to retain skilled staff.
• Minimal thermal distortion - the heat-affected zone is 3 to 5 times narrower than with MIG/TIG, eliminating the need for post-weld straightening operations on delicate parts.
• Weld beads with no subsequent grinding - aesthetic quality of specialist manual TIG level, but at MIG speed, completely eliminating the grinder finishing operation.
• Ergonomic portable head 1.5-2 kg - the operator can weld all day without the fatigue typical of a MIG/TIG welder using a heavy 3-5 kg gun.
• Optional wire feed system - for long beads with filler material, integrated into the base package with rollers and wire guide 0.8-1.2 mm.

Technical specifications - LAZIRON W portable laser welding machine

This LAZIRON portable laser welding machine is available in standardized configurations, the choice being made according to the application mix and the monthly production volume of the workshop.

Industries that use a LAZIRON portable laser welding machine

A LAZIRON portable laser welding machine is the choice for workshops that want to eliminate dependence on specialized TIG welders or to increase productivity on medium batches where MIG leaves aesthetic marks.

Premium metal furniture factories (stainless steel for commercial kitchens, professional tables, medical cabinets) use a single LAZIRON W portable laser welding machine to obtain perfectly clean beads without subsequent grinding. Stainless steel railing workshops and producers of decorative metal objects pay back the investment in 14-22 months by eliminating specialized TIG operators and finishing operations.

The premium automotive industry (components with high aesthetic requirements, vintage restorations), food and pharmaceutical equipment factories (stainless steel welding compliant with sanitary standards with clean beads), the HVAC industry (ducting for sensitive applications) and on-site rapid repair services benefit from the portability of the LAZIRON W portable laser welding machine.

Materials compatible with a LAZIRON portable laser welding machine

With power between 1000 and 3000 W, each LAZIRON LAZIRON W portable laser welding machine successfully processes all metals commonly used in fabrication, with consistent bead quality over long hours of operation.

The optional wire feed system allows welding with filler material for long beads, identical in principle to MIG but at clearly superior quality.

Typical performance per material

• Carbon steel - max. thickness (with 3000 W): 12 mm
• Stainless steel 304/316: 10 mm
• Aluminum (with argon gas): 8 mm
• Copper and brass (with power 2000 W+): 5 mm

How the LAZIRON W model works

The workflow of a LAZIRON LAZIRON W portable laser welding machine is built for direct use, with much shorter preparation than classic MIG/TIG.

1. The operator starts the machine and waits 30-60 seconds for the laser source and the chiller to stabilize.
2. Selects the function (welding / cutting / cleaning) and the parameters from the touch panel of the source.
3. Connects the argon gas cylinder or Ar/CO2 mix (for welding) or detaches it (for cleaning/cutting).
4. Aims the portable head at an angle of 80-90° to the surface, at a distance of 2-5 mm.
5. Pulls the trigger and moves the head with a uniform motion along the bead; typical speed 800-1500 mm/min.
6. The resulting bead is aesthetically perfect, without spatter, without residue, ready for the next operation.

For integration with other equipment in your workshop, the machine connects natively to the other LAZIRON equipment through a common MES.

Frequently asked questions about portable laser welding machines

How much do I save with a LAZIRON W portable laser welding machine compared to manual TIG?

Manual TIG: requires a specialized welder (salary 8,000-15,000 RON/month in Romania), speed 100-300 mm/min, distortions that require post-weld straightening. Laser W: any competent operator (salary 4,000-7,000 RON/month), speed 800-1500 mm/min, zero distortion. On an 8-hour shift with 5-6 productive hours, productivity increases by 300-400%, and the wage cost drops by 50-60%. Payback 14-22 months in workshops with 2-3 equivalent welders.

Can I weld aluminum with the LAZIRON W portable laser welding machine?

Yes, with power 2000-3000 W and argon shielding gas, aluminum is welded with results clearly superior to manual TIG: perfectly clean bead, no spatter, no large heat-affected zones. The only limitation: above 8 mm thickness, we recommend preheating the material to avoid bead cracking, a technique identical to TIG, but laser speed is in any case 3-4 times higher.

What shielding gas do I use?

For carbon steel: Ar/CO2 mix (80/20), economical and sufficient. For stainless steel 304/316: argon 99.99% pure, perfect beads without oxidation. For aluminum: argon 99.99% pure, higher flow rate. For copper and brass: argon or helium. Gas consumption is 30-50% lower than with MIG/TIG due to the superior speed of the laser process.

What is the difference between the LAZIRON W portable laser welding machine and the air-cooled LAZIRON WFA version?

W has water cooling with a dedicated chiller (continuous operation 8+ hours, up to 3000 W). WFA has air cooling (operation 4-6 hours, max 1500 W), easily portable on site or between locations, without an external chiller. For stationary workshops: W. For mobile services or occasional use: WFA with lower transport cost and instant installation.

What delivery, installation and training are included?

DAP delivery to your premises. The machine is plug-and-play: you connect it to the electrical outlet, attach the gas cylinder and start in 5 minutes. Online training (2-3 hours) is free, plus optionally 1 day on-site (450-650 EUR depending on distance). Free pre-delivery inspection for any LAZIRON W portable laser welding machine.

ROI calculation for a LAZIRON portable laser welding machine

The decision to invest in a portable laser welding machine is not made on the basis of technical specifications alone; what matters is how the equipment translates into real monthly cash-flow figures for your workshop.

For workshops that currently subcontract the equivalent operations at 2026 Romanian market prices, bringing them in-house with a LAZIRON portable laser welding machine reduces the effective cost per operation by 50-70%. At a typical monthly volume handled in-house instead of subcontracted, the investment is recovered in 18-30 months under current Romanian market conditions.

The additional margin comes from three directions: the saving compared to subcontracting, offering services to external local customers at market prices, and reducing delivery times to end customers by 40-60%, which allows premium prices on urgent orders or those with short deadlines.

Why choose LAZIRON for a portable laser welding machine

LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious workshop can afford, not just large factories with multi-million-euro CAPEX investment budgets.

• Affordable price for premium 3-in-1 laser technology - the critical components (fiber source, portable head, S&A chiller) are those used by premium European manufacturers, but the LAZIRON package costs 35-45% less.
• 120-month warranty — for the machine body and critical mechanical components, according to the configuration, contract and operating conditions.
• Free 24/7 technical support - for the entire service life of the equipment, with direct access to LAZIRON engineers.
• Free pre-delivery inspection - with a live test on both modes (welding + cleaning) on your reference materials.
• European funds compatibility - meets the requirements of the PNRR, ERDF and national funds for industrial digitalization and replacement of old technologies.
• Components compliant with standards - the fiber source meets the reliability specifications of the world's leading manufacturers.

The critical components in the standard configuration meet the reliability specifications established by the leaders of the laser industry, with a declared service life of over 100,000 operating hours on the fiber source.

See the entire LAZIRON range of industrial equipment to compare models and request a personalized offer.

Portable laser welding machine LAZIRON W turns the workshop's key operations into a real competitive advantage: premium-level quality, sustained productivity and an affordable investment for any workshop that wants to grow without doubling its fixed cost structure.
