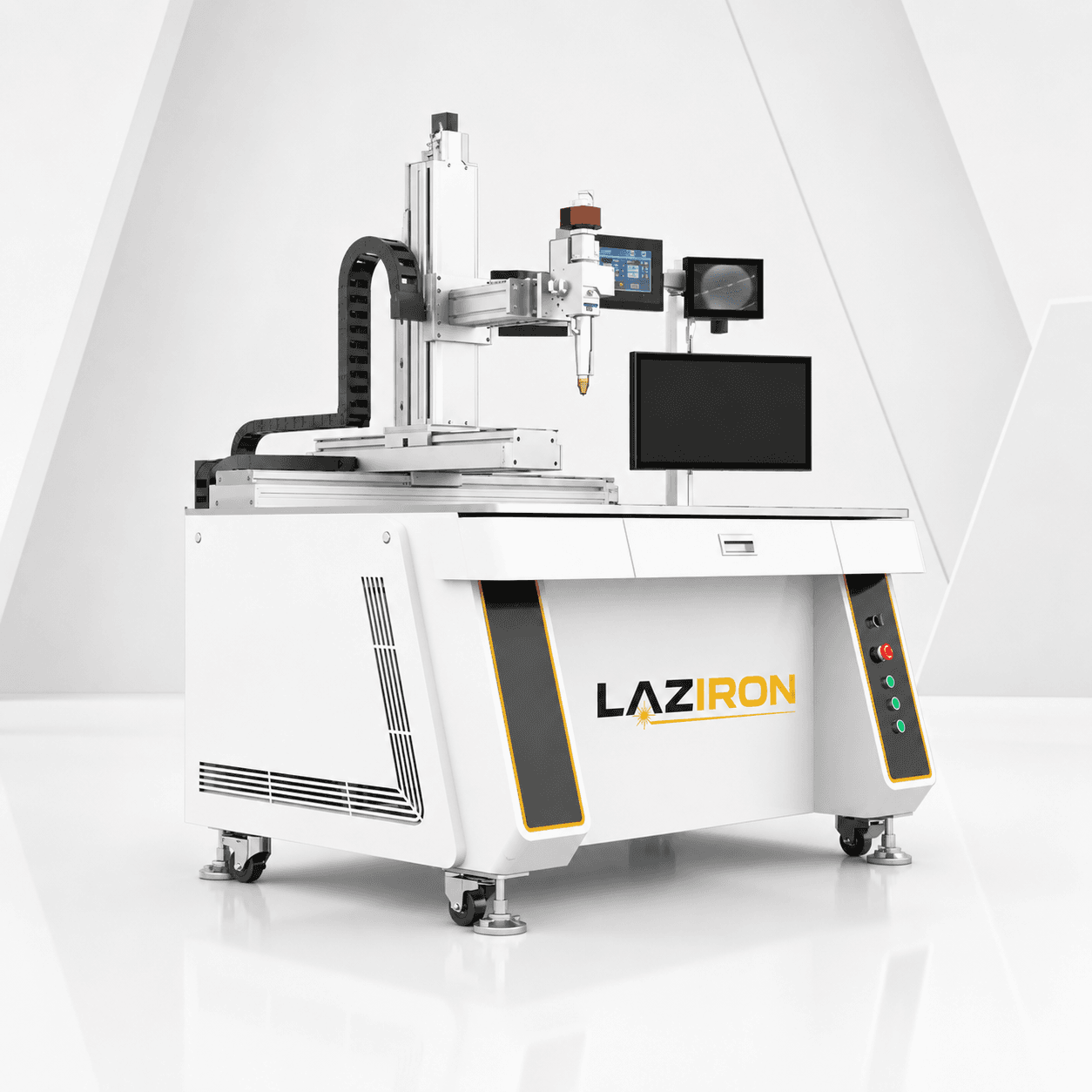

LAZIRON WA Automatic Laser Welding Machine

Automatic laser welding machine LAZIRON turns laser welding from an assisted manual operation into a fully automated process. The system with a 6-axis articulated robot or a programmable XYZ bed produces perfectly repeatable weld seams on large batches, completely eliminating human welder variability.

With power between 1000 and 2000 W, the QilinV20 automated control system and options for a 6-axis robot or programmable XYZ bed, every LAZIRON WA automatic laser welding machine is built for workshops with series production where weld seam repeatability matters more than flexibility: second-tier automotive industry, series food-equipment factories and standard metal furniture manufacturers.

What makes the LAZIRON WA an automatic laser welding machine built for real production

The LAZIRON WA automatic laser welding machine combines in a single system the advantages that matter on the production line: repeatable precision, parameter automation, predictable operating costs and a long service life for critical components.

• Automatic system with QilinV20 control — produces perfectly repeatable weld seams on large batches, with variation under ±0.1 mm between identical parts — impossible to achieve manually.
• Fiber power 1000-2000 W — configurable for thin-sheet batches (under 6 mm) typical of series industry: panels, vessels, standard structures.
• Raycus / JPT / Max compatibility — laser source selectable according to the specific quality-price requirements of each workshop.
• Pre-configured program library — includes hundreds of weld seam patterns for standard applications (linear, circular, complex 2D) — the operator selects and starts, with no CAM programming.
• Automatic wire feed system — integrated in the base package, with rollers and wire guide 0.8-1.2 mm for long seams with filler material.
• 100% elimination of the human welder on series batches — the operator becomes a supervisor for 3-5 machines simultaneously, multiplying productivity per wage paid.
• Compatibility with MES and ERP — automatic reporting of welding cycles, alarms on deviations, integrable with Monday.com or other production management systems.

Technical specifications — LAZIRON WA automatic laser welding machine

This LAZIRON automatic laser welding machine is available in standardized configurations, the choice being made according to the application mix and the workshop's monthly production volume.

Industries that use a LAZIRON automatic laser welding machine

A LAZIRON automatic laser welding machine is chosen by factories with series production where repeatability matters more than manual flexibility, and where the cost of the skilled welder exceeds 60-70% of the total weld seam cost.

The second-tier automotive industry uses a single LAZIRON WA automatic laser welding machine for batches of brackets, reinforcements and auxiliary frames with short repetitive seams (under 100 mm each) on batches of 500-5000 identical parts. Eliminating human welder variability is crucial for IATF 16949 automotive certifications.

Series food-equipment factories (professional sinks, stainless steel work tables, sterilization cabinets), standardized metal furniture manufacturers and the HVAC industry with circular seams on ducting pay off the investment in the LAZIRON WA automatic laser welding machine in 18-30 months at typical volumes above 1000 parts/month with standard seams.

Materials compatible with a LAZIRON automatic laser welding machine

With power between 1000 and 2000 W and full automation, every LAZIRON LAZIRON WA automatic laser welding machine processes large batches on typical metals with consistent quality across all parts.

The QilinV20 system permanently monitors the weld seam parameters (current, speed, gas flow) and adjusts automatically to maintain uniform quality even across material batch changes.

Typical performance per material

• Carbon steel — max. thickness: 8 mm
• Stainless steel 304/316: 6 mm
• Aluminium (with argon): 5 mm
• Galvanized sheet: 4 mm

How the LAZIRON WA model works

The workflow of a LAZIRON LAZIRON WA automatic laser welding machine is built for autonomy — the operator intervenes only when loading the part and checking the quality of the final weld seam.

1. The operator loads the part onto the fixturing system (XYZ bed or rotary head for the 6-axis robot).
2. Selects the program from the QilinV20 library or loads a new one from DXF/CAD.
3. The system automatically calibrates the zero point on the part's reference point.
4. Checks the argon gas flow and starts the cycle with a single click.
5. The robot or XYZ bed produces the weld seam at the programmed speed, and the laser keeps the parameters constant.
6. At the end, the part is unloaded and the next one is loaded — the operator supervises 3-5 machines simultaneously.

For integration with other equipment in your workshop, the machine connects natively to the other LAZIRON equipment through a common MES.

Frequently asked questions about the automatic laser welding machine

When should I choose a LAZIRON WA automatic laser welding machine instead of the W handheld unit?

Four criteria: if you produce in batches above 200-500 identical parts/day, if the seams are short repetitive (under 200 mm), if the repeatability requirements are below ±0.2 mm between parts, or if the cost of the skilled welder is a decisive factor in your cost structure. Below these criteria, the W handheld unit offers greater flexibility at a lower cost.

What is the difference between the XYZ bed and 6-axis robot configuration?

XYZ bed (standard): seams in a 2D plane on flat parts, maximum speed on large batches of identical parts, lower price. 6-axis robot (optional): complex 3D seams on curved parts or parts with multiple planes (auto frames, HVAC ducting), 35-45% higher price. For 70% of metal fabrication applications, the XYZ bed is sufficient. For automotive, complex HVAC, naval: the 6-axis robot.

What automation does a LAZIRON WA automatic laser welding machine require in the workshop?

The machine is autonomous in producing the weld seam, but requires part loading-unloading that is still manual or with an additional robot. For full automation (no operator), we recommend integration with a 4-6 axis handling robot for loading (additional cost 30,000-60,000 EUR). For medium-volume workshops, one operator supervises 3-5 machines simultaneously.

Can I program new weld seams quickly on the automatic laser welding machine?

For 2D seams on the XYZ bed: DXF import + parameter setting = 15-30 minutes per new program. For 3D seams on the 6-axis robot: offline programming with RoboGuide or equivalent = 1-3 hours per new complex program. Operators with basic CNC training manage the first after 2-3 days of training; for 6 axes a dedicated programmer is needed (2-3 weeks training).

What delivery, installation and training are included?

DAP delivery to your premises. Installation (mechanical assembly, electrical-pneumatic connection, axis calibration), commissioning and operator training (5-7 days for the XYZ bed, 10-14 days for the 6-axis robot) are optional contractable services. Free pre-delivery inspection with a live test on reference parts supplied by you.

ROI calculation for a LAZIRON automatic laser welding machine

The decision to invest in an automatic laser welding machine is not made on technical specifications alone — what matters is how the equipment translates into real monthly cash-flow figures for your workshop.

For workshops that currently subcontract the equivalent operations at 2026 Romanian market prices, bringing the work in-house with a LAZIRON automatic laser welding machine reduces the effective cost per operation by 50-70%. At a typical monthly volume operated in-house instead of subcontracted, the investment is recovered in 18-30 months under current Romanian market conditions.

The additional margin comes from three directions: the savings compared to subcontracting, offering services to external local clients at market prices, and reducing delivery times to end clients by 40-60%, which allows premium prices on urgent orders or those with short deadlines.

Why choose LAZIRON for an automatic laser welding machine

LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious workshop can sustain, not just large factories with multi-million-euro budgets for CAPEX investments.

• Affordable price for a complete automated system — the critical components (fiber source, robot/XYZ bed, QilinV20 control) are those used by premium European and Asian manufacturers, but the LAZIRON package costs 35-45% less.
• 120-month warranty — for the machine body and critical mechanical components, according to the configuration, contract and operating conditions.
• Free 24/7 technical support — essential for a machine intended for autonomous production where every hour of downtime directly affects deliveries.
• Free pre-delivery inspection — with a full test of the automatic cycle on your reference parts and a process capability report.
• European funds compatibility — meets the requirements of PNRR, ERDF and national funds for significant CAPEX projects of industrial automation.
• Standards-compliant components — the fiber source and the control system meet the reliability specifications of the leading manufacturers on the world market.

The critical components in the standard configuration meet the reliability specifications set by the laser industry leaders, with a declared lifetime of over 100,000 operating hours on the fiber source.

See the entire LAZIRON range of industrial equipment to compare models and request a personalized quote.

The LAZIRON WA automatic laser welding machine turns the workshop's key operations into a real competitive advantage: premium-level quality, sustained productivity and an affordable investment for any workshop that wants to grow without doubling its fixed cost structure.
