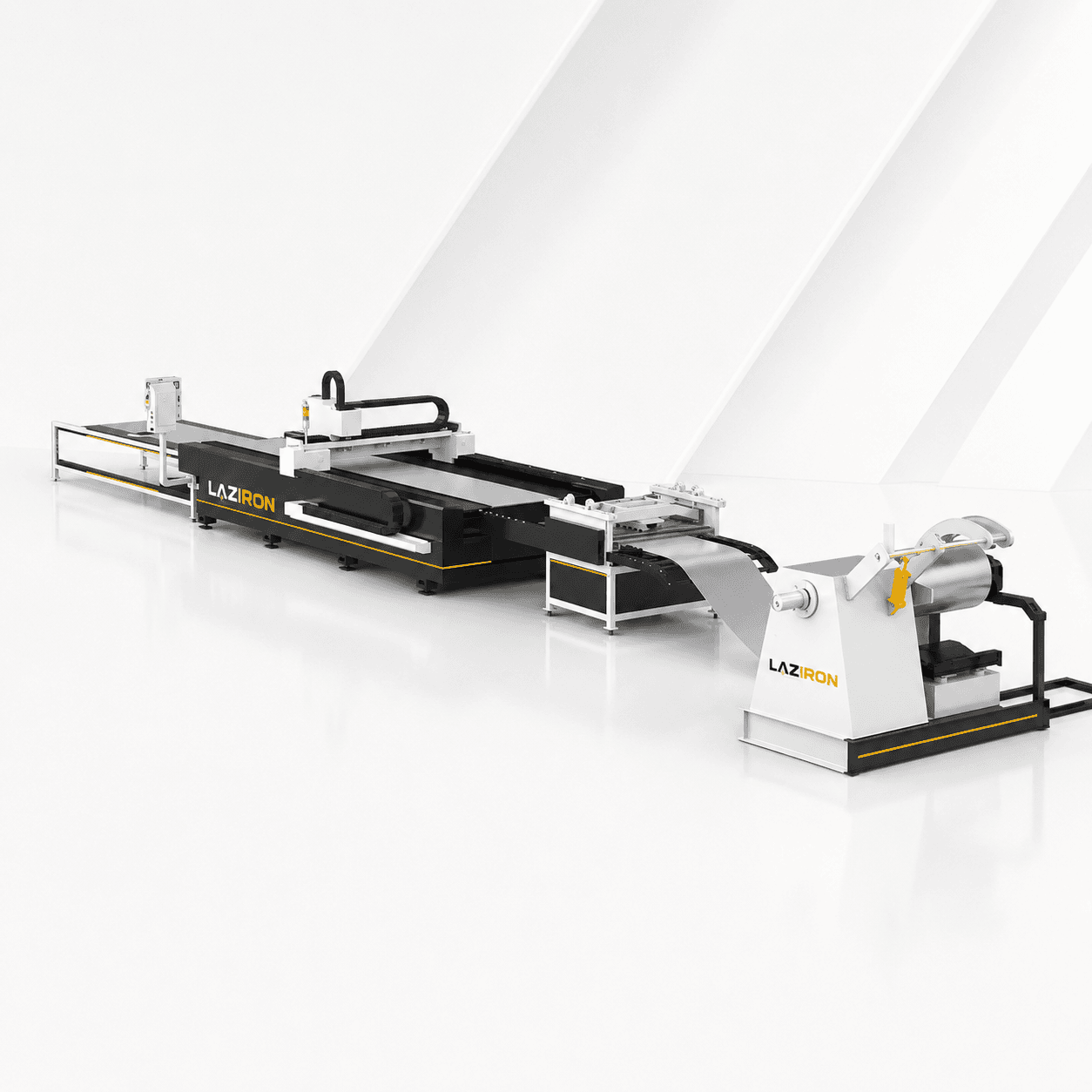

LAZIRON R Coil Sheet Laser Cutting Machine

Coil sheet laser cutting machine LAZIRON eliminates the costly pre-shearing of sheet coils into individual sheets from the process. The machine unwinds the sheet directly from the coil, levels it, feeds it and cuts it continuously, all in a single station, with no manual handling.

With a fiber laser source between 1.5 and 6 kW and a motorized unwinding system for coils up to 10 tonnes, every LAZIRON coil sheet laser cutting machine delivers high-volume productivity at an unbeatable processing cost per m² for workshops with repetitive production: ventilation panels, HVAC components, automotive brackets or long runs of identical parts.

What makes the LAZIRON R a coil sheet laser cutting machine built for real production

The LAZIRON R coil sheet laser cutting machine combines in a single system the advantages that matter on the production line: repeatable precision, parameter automation, predictable operating costs and a long service life for critical components.

• Motorized decoiler for 5-10 tonne coils — eliminates the pre-shearing of sheets and reduces material loading time from 30 min to under 10 min per cycle.
• 11-roller leveling machine — removes the sheet's coiling memory and ensures perfectly flat material at the entry to the cutting zone, essential for contour accuracy.
• Servomotor feed system — pushes the material into the cutting zone with ±0.1 mm accuracy and constant speed, synchronized with the Cypcut program.
• Fiber laser power 1.5–6 kW — optimized for the 0.5-6 mm thicknesses typical of coils, the sub-segment with the highest processing volume in the industry.
• RayTools head with capacitive autofocus — adjusts the focus in real time to compensate for any thickness variations in the rolled coil.
• Cypcut control system with continuous mode — runs nesting programs over successive coil segments, maintaining part traceability per batch.
• Material loss reduced below 8% — nesting over long coil segments optimizes the loss between parts, compared to nesting on individual sheets where the edges are fixed.

Technical specifications — LAZIRON R coil sheet laser cutting machine

This LAZIRON coil sheet laser cutting machine is available in standardized configurations, the choice being made according to the mix of materials processed and the workshop's monthly production volume.

Industries that use a LAZIRON coil sheet laser cutting machine

A LAZIRON coil sheet laser cutting machine is the optimal choice for workshops with high-series production and a repetitive mix, where the cost difference between cutting from sheets and cutting directly from the coil translates into concrete percentage points of margin.

Manufacturers of HVAC equipment, ventilation systems and air ducts use a single LAZIRON R coil sheet laser cutting machine to continuously cut thin sheet parts (0.5-3 mm) that then go on to bending on a press brake or to automatic welding. The automotive industry, for second-tier parts (clips, brackets, chassis reinforcements), processes batches of tens of thousands of identical pieces directly from galvanized or pickled steel coils.

Factories making household appliances, industrial electronics and outdoor lighting equipment with long runs of standard products quickly amortize the investment in a coil sheet laser cutting machine: the cost per m² processed drops by 25-40% compared to the same production run on an individual-sheet machine.

Materials compatible with a LAZIRON coil sheet laser cutting machine

With laser sources between 1.5 and 6 kW, every LAZIRON LAZIRON R coil sheet laser cutting machine is optimized for the thicknesses typical of cold-rolled or hot-rolled coils.

The 11-roller leveling system is calibrated for coil materials: cold-rolled (CRS), galvanized (DX51D, DX52D) and medium-gauge stainless steel (304, 316L).

Maximum thicknesses per material (in the maximum configuration)

• Cold-rolled steel (CRS): 0.5 – 6 mm
• Galvanized steel (DX51D, DX52D): 0.5 – 3 mm
• Stainless steel (304, 316L): 0.5 – 4 mm
• Aluminium (1050, 5754): 0.5 – 3 mm

How the LAZIRON R model works

The workflow of a LAZIRON LAZIRON R coil sheet laser cutting machine turns the raw coil into finished parts in a single continuous operation, with no intermediate pre-shearing steps.

1. The coil is mounted on the motorized mandrel with a hydraulic centering system, in 10-15 minutes without an external crane.
2. The end of the sheet is fed into the 11-roller leveling machine, which removes the coiling curvature and the waviness.
3. The feed servomotor pushes the material into the cutting zone at the speed programmed in Cypcut.
4. The RayTools head cuts the contours of the parts nested on the current coil segment, with continuous autofocus.
5. The system automatically detects the end of the segment and advances a new segment without a pause in the program.
6. The finished parts fall onto the discharge conveyor, while the scrap is separated onto a secondary conveyor.

For integration with other metalworking equipment, the machine connects natively to press brakes and to the other LAZIRON lines through a shared MES.

Frequently asked questions about coil sheet laser cutting machines

What advantages do I get with a coil sheet laser cutting machine compared to a sheet machine?

Three measurable advantages: eliminating the pre-shearing cost (200-400 EUR/tonne in Romania), reducing material loss from 22-28% on sheets to under 8% on coil thanks to continuous nesting, and increasing productivity by 40-60% on large batches (over 500 identical parts) by eliminating handling between sheets.

What volumes justify the investment in a LAZIRON coil sheet laser cutting machine?

The amortization threshold is reached at a monthly consumption of at least 8-10 tonnes of sheet in large batches. Below this volume, the cost of changing coils (from one width/thickness to another) cancels out the savings. Above 15 tonnes/month, the ROI drops to 18-24 months under current market conditions.

How long does a coil change take?

With the motorized decoiler and hydraulic centering system, a coil change takes 10-15 minutes, compared to 45-60 minutes on machines with a manual decoiler. This includes removing the spent coil, mounting the new one and calibrating the sheet end in the leveler.

Can I cut stainless steel with a coil sheet laser cutting machine?

Yes, the standard configuration supports 304 and 316L stainless steel coils in 0.5-4 mm gauges. For best results, we recommend the 6 kW source with nitrogen as the assist gas. The leveling system adjusts automatically for the additional tension of the stainless material, and the RayTools head switches the parameters from Cypcut.

What delivery and installation are included?

DAP delivery to the buyer's premises. Installation, commissioning and operator training are optional contractable services, recommended for any LAZIRON coil sheet laser cutting machine due to the complexity of line calibration. The pre-delivery online inspection is free, with a live video feed.

ROI calculation for a LAZIRON coil sheet laser cutting machine

The decision to invest in a coil sheet laser cutting machine is not made on technical specifications alone: what matters is how the equipment translates into real monthly cash-flow figures for your workshop.

For workshops that currently subcontract laser cutting at 0.8-1.4 EUR/linear m cut plus material cost, bringing it in-house with a LAZIRON coil sheet laser cutting machine reduces the effective cost per m² processed by 55-70%. At a monthly volume of 5-8 tonnes of sheet processed in-house instead of subcontracted, the investment is recovered in 18-30 months under current Romanian market conditions.

The additional margin comes from three directions: the saving over subcontracting, offering cutting services to local external clients (1.2-1.8 EUR/m at the level of the Romanian market in 2026), and reducing delivery times to end customers by 40-60%, which allows premium prices on urgent orders.

Why choose LAZIRON for a coil sheet laser cutting machine

LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious workshop can sustain, not just the large factories with multi-million-euro budgets for CAPEX investments.

• Affordable price for an integrated coil-to-part system — the components (decoiler, leveler, laser source, RayTools head) are the ones used by premium manufacturers, but the LAZIRON package costs 35-45% less than the European alternatives.
• 120-month warranty — for the machine body and critical mechanical components, according to the configuration, contract and operating conditions.
• Free 24/7 technical support — essential for an integrated line where module synchronization requires rapid intervention.
• Free pre-delivery inspection — with a test on your reference coil and a complete acceptance report.
• Compatibility with European funds — meets the requirements of the NRRP, ERDF and national industrial digitalization funds.
• Components compliant with standards — the fiber source meets the reliability specifications of the leading manufacturers on the global market.

The fiber laser source in the standard configuration meets the reliability specifications set by the leaders of the laser industry, with a declared lifetime of over 100,000 operating hours.

See the entire LAZIRON range of metalworking equipment to compare models and request a personalized quote.

The LAZIRON R coil sheet laser cutting machine turns cutting into a real competitive advantage: premium-grade precision, sustained productivity and an affordable investment for any workshop that wants to grow without doubling its fixed cost structure.
