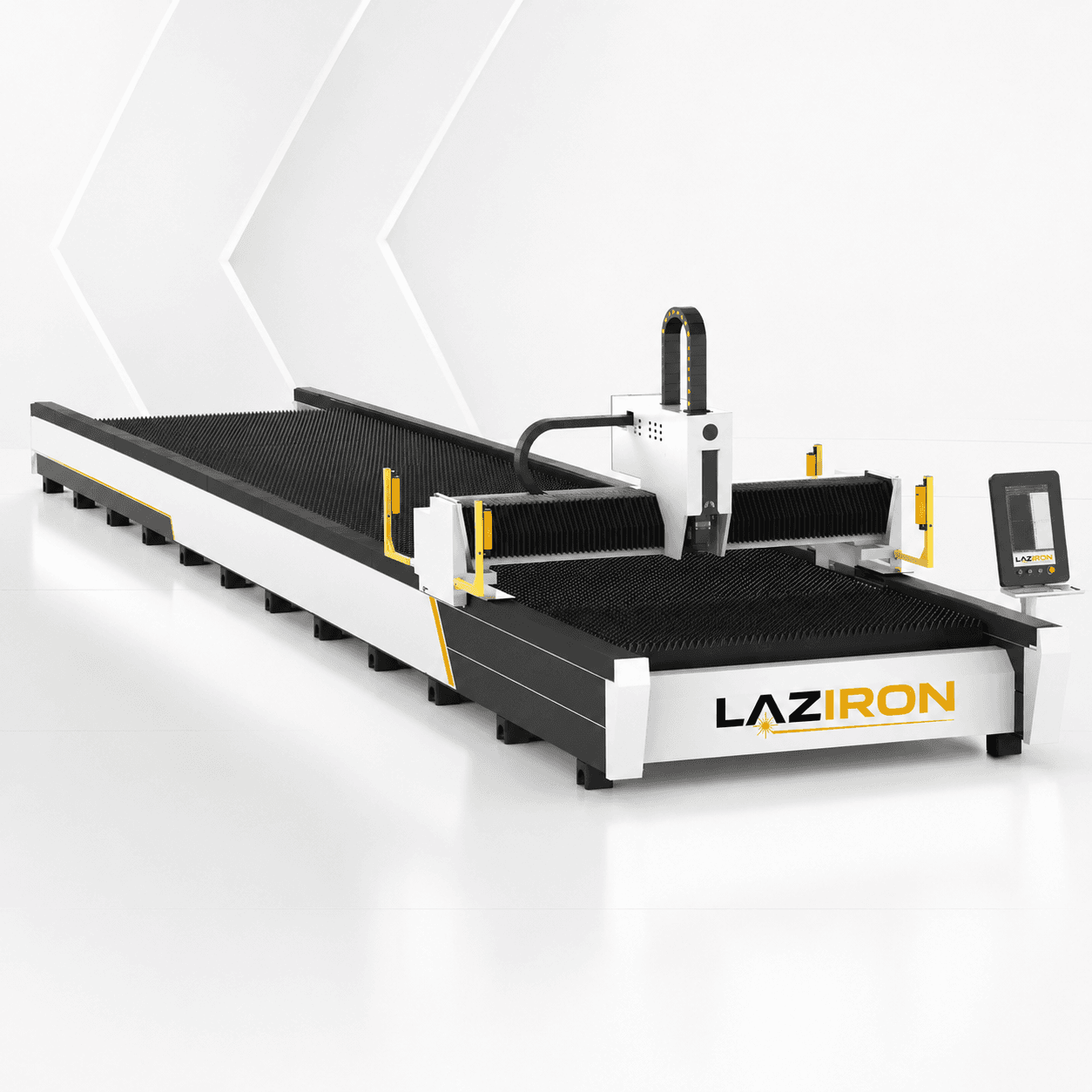

LAZIRON FL Large-Format Laser Cutting Machine

The large-format laser cutting machine from LAZIRON is built for shops that frequently process large sheets, beyond the standard 6020 formats: 12×2 m, 8×2.5 m or 10×2 m sheets, typical of shipyards, machinery manufacturers and container producers.

With a fiber laser source between 6 and 30 kW and a working area of up to 12000 × 2000 mm in a single rigid frame, every LAZIRON large-format laser cutting machine delivers extra-large-format productivity at an investment cost that keeps payback within realistic windows for any serious production shop, not just for factories with large budgets.

What makes the LAZIRON FL a large-format laser cutting machine built for real production

The LAZIRON FL large-format laser cutting machine combines in a single system the advantages that matter on the production line: repeatable precision, parameter automation, predictable operating costs and a long service life for critical components.

• Usable area up to 12000 × 2000 mm: in a single rigid frame, with no external rail, which simplifies placement and reduces foundation requirements compared to ground-rail machines.
• Fiber laser power 6–30 kW: configurable for shops that cut both thin 3 mm sheets (with 6 kW) and heavy 40 mm plates (with 30 kW): same frame, upgradable source.
• Anti-vibration reinforced frame: maintains ±0.05 mm accuracy over the full 12 m travel, essential for structural parts where cumulative deviation affects the assembly.
• RayTools head with capacitive autofocus: automatically compensates for the flatness variations of large sheets, common at thicknesses above 15 mm.
• Cypcut control system with nesting: fly-cutting and common edge cutting on large surfaces: material waste drops below 12% on 24 m² sheets.
• CAD/CAM software with fly-cutting: keeps the head in continuous motion across successive contours, shortening the total program time by 25-35%.
• S&A dual-circuit cooling: mandatory for sources above 12 kW, it keeps the optical temperature constant over the long cycles typical of large-format cutting.

Technical specifications: LAZIRON FL large-format laser cutting machine

This LAZIRON large-format laser cutting machine is available in standardized configurations, the choice being made according to the mix of materials processed and the shop's monthly production volume.

Industries that use a LAZIRON large-format laser cutting machine

A LAZIRON large-format laser cutting machine is chosen by shops that cannot fit their parts into the standard 3015 or 6020 formats but do not need the maximum reach of a ground-rail machine.

Container and tank manufacturers cut the plates for side walls (typical lengths 6-12 m) in a single pass with one LAZIRON FL large-format laser cutting machine, without intermediate welded joints that would affect integrity. The same machine also serves shipyards for hull plating and deck beams.

The heavy agricultural machinery industry, manufacturers of stationary cranes, structures for solar parks and components for railway transport lines constantly use the 12 m format. The LAZIRON FL large-format laser cutting machine lets them cut the whole part from a single sheet, simplifying internal logistics and reducing material consumption.

Materials compatible with a LAZIRON large-format laser cutting machine

With fiber laser sources between 6 and 30 kW, every LAZIRON FL large-format laser cutting machine covers the full range of industrial thicknesses for factories with varied production.

The RayTools head with capacitive autofocus adjusts the focus for each thickness without a technical pause, and Cypcut switches parameters automatically when the program changes.

Maximum thicknesses per material (in the maximum configuration)

• Carbon steel (with 30 kW source): up to 50 mm
• Stainless steel (with 20 kW source): up to 40 mm
• Aluminum (with 20 kW source): up to 30 mm
• Low-alloy steel (S355, S420): up to 35 mm

How the LAZIRON FL model works

The workflow of a LAZIRON FL large-format laser cutting machine is built for large parts where every handling of the sheet costs time and risks damage.

1. The large sheet is placed on the work table with a crane system or integrated palletizing, depending on weight.
2. The operator calibrates the part origin through automatic edge detection in Cypcut, scanned from the console.
3. Nesting optimizes part positioning across the entire 24 m² surface, with fly-cutting between successive contours.
4. The RayTools head runs the program with continuous autofocus, compensating for the flatness variations of the large sheet.
5. The anti-collision system continuously monitors the nozzle-material distance and stops the head in case of an obstacle.
6. Finished parts are unloaded by crane or on a conveyor, and the scrap is collected for recycling.

For integration with other metalworking equipment, the machine connects natively to press brakes and to the other LAZIRON lines through a shared MES.

Frequently asked questions about the large-format laser cutting machine

What is the difference between a LAZIRON FL large-format laser cutting machine and a ground-rail LAZIRON G one?

The LAZIRON FL machine has a closed rigid frame with a fixed 12×2 m area, easy to install and more affordable. The LAZIRON G machine has an extendable ground rail and allows customizable lengths up to 25 m, but it requires a special foundation and costs 30-40% more. If your products do not exceed 12 m in length, the FL is the optimal cost-performance choice.

Can I cut very thick plates on a large-format laser cutting machine?

Yes, the configuration with a 30 kW source allows cutting carbon steel up to 50 mm. For greater thicknesses (50-80 mm), we recommend the LAZIRON G series, which supports 60 kW sources. For frequent applications below 30 mm, the 12-20 kW source in the FL series is sufficient and more energy-efficient.

What space requirements do I have for installation?

For the standard 12000 × 2000 mm model: a minimum hall of 18 × 6 m (machine + sheet handling space + crane), free height of 4.5 m, a reinforced concrete foundation at least 200 mm thick across the entire surface. Three-phase 380 V voltage with variable absorbed power (40-120 kVA depending on the laser source).

How much do I save compared to cutting the same part with welded joints?

For a 10 × 1.8 m structural plate that would otherwise be made from 3 butt-welded pieces, the saving is 4-6 hours of welding labor plus 0.5-1 kg of electrode plus the reduced risk of thermal distortion. At an average cost of 35-45 EUR/hour, the saving per part is between 200 and 350 EUR, plus the clearly superior mechanical quality of the one-piece part.

What training is required for operators?

For an operator with prior experience on a 6020 laser, the transition to the LAZIRON FL large-format laser cutting machine requires 3-5 days of on-site training for handling large sheets, calibrating the origin and optimizing nesting on extended surfaces. LAZIRON provides training at purchase plus access to the online platform with tutorials.

ROI calculation for a LAZIRON large-format laser cutting machine

The decision to invest in a large-format laser cutting machine is not made on the basis of technical specifications alone: what matters is how the equipment translates into real monthly cash-flow figures for your shop.

For shops that currently subcontract laser cutting at 0.8-1.4 EUR per linear meter cut plus material cost, bringing it in-house with a LAZIRON large-format laser cutting machine reduces the effective cost per m² processed by 55-70%. At a monthly volume of 5-8 tons of sheet processed in-house instead of subcontracting, the investment is recovered in 18-30 months under current Romanian market conditions.

The additional margin comes from three directions: the saving over subcontracting, offering cutting services to local external customers (1.2-1.8 EUR/m at the level of the Romanian market in 2026) and reducing delivery times to end customers by 40-60%, which allows premium prices on urgent orders.

Why choose LAZIRON for a large-format laser cutting machine

LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious shop can sustain, not just large factories with multi-million-euro budgets for CAPEX investments.

• Affordable price for extra-large format: the critical components are identical to those used by premium manufacturers, but the LAZIRON package costs 30-40% less than the European alternatives.
• 120-month warranty — for the machine body and critical mechanical components, according to the configuration, contract and operating conditions.
• Free 24/7 technical support: throughout the equipment's service life, via the online platform and direct access to engineers.
• Free pre-delivery inspection: mandatory to validate accuracy over the entire 12 m long-axis travel before shipping.
• European funding compatibility: meets the requirements of the NRRP, ERDF and national industrial digitalization funds.
• Standards-compliant components: the fiber source meets the reliability specifications of the world's leading manufacturers.

The fiber laser source in the standard configuration meets the reliability specifications set by the leaders of the laser industry, with a declared lifetime of over 100,000 operating hours.

See the entire LAZIRON range of metalworking equipment to compare models and request a personalized quote.

The LAZIRON FL large-format laser cutting machine turns cutting into a real competitive advantage: premium-grade precision, sustained productivity and an affordable investment for any shop that wants to grow without doubling its fixed-cost structure.
