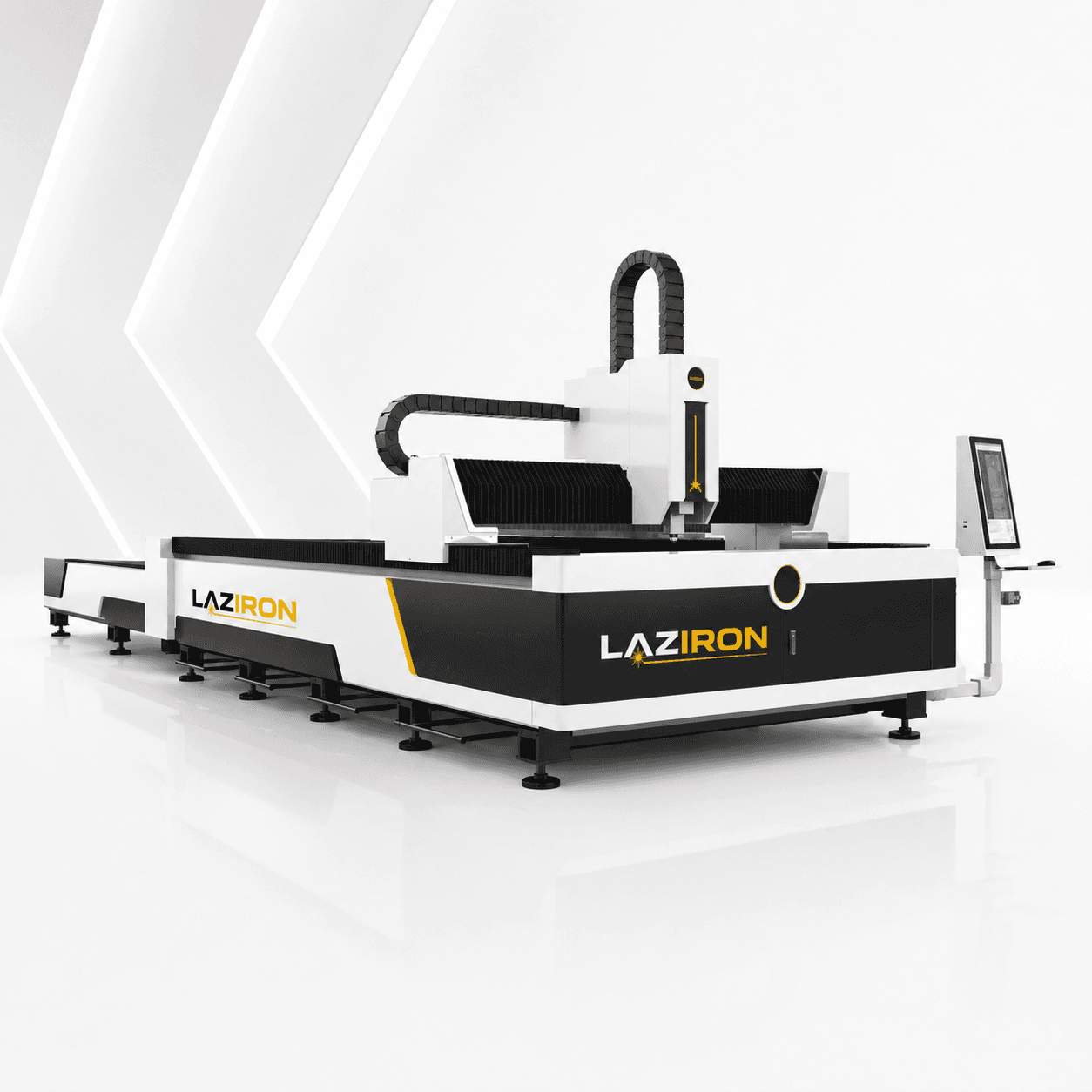

LAZIRON E Laser cutting machine with exchangeable table

Laser cutting machine with exchangeable table LAZIRON is the choice of workshops that want continuous productivity without the extra investment in a fully enclosed housing. The dual alternating table system allows loading in parallel with cutting, eliminating the main source of lost time on a standard laser machine.

With a fiber laser source between 1.5 and 20 kW, a usable surface of 3000 × 1500 mm and a motorized exchange system in under 30 seconds, every LAZIRON laser cutting machine with exchangeable table keeps the laser head moving 85-90% of the actual working time, delivering premium-level productivity at a price 25-30% lower than the equivalent enclosed model.

What makes LAZIRON E a laser cutting machine with exchangeable table built for real production

The LAZIRON E laser cutting machine with exchangeable table concentrates in a single system the advantages that matter on the production line: repeatable precision, parameter automation, predictable operating costs and long service life for the critical components.

• Dual motorized table system — alternating, with synchronized transfer in under 30 seconds — the laser head stays in almost continuous motion, with no loading-unloading pauses.
• Fiber laser power 1.5–20 kW — configurable in 1.5/3/6/12/20 kW steps for workshops that want to increase power later without replacing the mechanical frame.
• Open construction with easy access — allows loading and unloading by crane or manually, ideal for workshops with large parts or varied geometries that require direct handling.
• RayTools head with capacitive autofocus — instant switching between materials and thicknesses, with automatic parameter adjustment from Cypcut.
• Cypcut control system — with automatic nesting, fly-cutting and common edge cutting to reduce waste below 12% per cycle.
• S&A dual-circuit cooling — mandatory for sources above 12 kW, it keeps the optical temperature constant over long production cycles.
• Side protection panels — meet the minimum safety requirements for laser class 4 with a clearly delimited access zone.

Technical specifications — LAZIRON E laser cutting machine with exchangeable table

This LAZIRON laser cutting machine with exchangeable table is available in standardized configurations, the choice being made according to the mix of processed materials and the workshop's monthly production volume.

Industries that use a LAZIRON laser cutting machine with exchangeable table

A LAZIRON laser cutting machine with exchangeable table is chosen in workshops where productivity matters more than acoustic or emission isolation, and where parts require frequent loading and unloading by crane or in various formats.

Metal fabrication shops with build-to-order production, steel structure factories for construction and metalwork joinery workshops use a single LAZIRON E laser cutting machine with exchangeable table to process large parts (3 × 1.5 m) at continuous speed, with easy crane access at every cycle. Industrial equipment manufacturers with a mix of small and medium batches benefit from the flexibility of the open construction.

Laser cutting subcontracting workshops use the exchangeable table configuration to increase their processing capacity by 30-40% compared with a standard machine, without the additional investment in a second complete line. The metal construction sector and metal furniture production justify the investment through an ROI of 18-28 months.

Materials compatible with a LAZIRON laser cutting machine with exchangeable table

With fiber laser sources between 1.5 and 20 kW, every LAZIRON LAZIRON E laser cutting machine with exchangeable table covers the full range of common metals without interchangeable heads.

Switching parameters between materials is done automatically from Cypcut, and the RayTools capacitive autofocus eliminates manual adjustments.

Maximum thicknesses per material (in the maximum configuration)

• Carbon steel (with 12 kW source): up to 25 mm
• Stainless steel (with nitrogen): up to 20 mm
• Aluminum (with 20 kW source): up to 16 mm
• Copper and brass (with 6 kW+ source): up to 10 mm

How the LAZIRON E model works

The workflow of a LAZIRON LAZIRON E laser cutting machine with exchangeable table is built for continuous flow with easy access at every cycle.

1. The operator loads the raw sheet onto the outer table by crane or manually, while the inner table runs a started program.
2. At the end of the current program, the motorized system exchanges the tables in under 30 seconds.
3. The next program starts immediately after the exchange, with no perceptible pause.
4. While the inner table cuts, the operator unloads the finished parts and loads a new sheet onto the outer table.
5. The anti-collision system constantly monitors the nozzle-material distance, stopping the head in case of an obstacle.
6. The cycle repeats continuously, with pauses only to change the assist gas cylinder or to switch the laser source for very different materials.

For integration with other metalworking equipment, the machine connects natively to press brakes and to the other LAZIRON lines through a shared MES.

Frequently asked questions about the laser cutting machine with exchangeable table

What is the difference between a LAZIRON E laser cutting machine with exchangeable table and an enclosed LAZIRON EP laser machine with exchangeable table?

LAZIRON E has an open construction with side panels (laser class 4, easy crane access). LAZIRON EP has a fully enclosed housing (laser class 1, integrated fume extraction system). The EP costs 25-30% more but offers safety, emission compliance and placement flexibility. The choice depends on your specific environment requirements and budget.

How much do I save with the laser cutting machine with exchangeable table compared with a single table?

Over an 8-hour shift with average programs of 12-18 minutes, eliminating the loading-unloading time brings a 25-30% productivity increase. At a typical hourly cost and 2 shifts per day, the annual saving exceeds 35,000-50,000 EUR, a figure that on its own amortizes the price difference compared with a single-table machine in 8-12 months.

Can I load large parts by crane on a laser cutting machine with exchangeable table?

Yes, the open construction allows crane access to the outer table without removing panels. Maximum capacity per table: 2000 kg for the standard 3015 configuration. For parts under 200 kg, manual loading with two operators is viable.

What hall size do I need?

For the 3015 configuration with exchangeable table: minimum hall 10 × 5 m (machine + the two table positions + maneuvering space), clear height 3.5 m for loading with an internal crane, reinforced concrete foundation of at least 200 mm. Three-phase voltage 380 V with absorbed power of 20-60 kVA depending on the laser source.

What delivery and installation are included?

DAP delivery to your premises. Installation, commissioning and operator training are optional services that can be contracted separately. Pre-delivery online inspection is free for any LAZIRON E laser cutting machine with exchangeable table, with a live test on your reference material.

ROI calculation for a LAZIRON laser cutting machine with exchangeable table

The decision to invest in a laser cutting machine with exchangeable table is not made on technical specifications alone; what counts is how the equipment translates into real monthly cash-flow figures for your workshop.

For workshops currently subcontracting laser cutting at 0.8-1.4 EUR/linear m cut plus material cost, bringing it in-house with a LAZIRON laser cutting machine with exchangeable table reduces the effective cost per m² processed by 55-70%. At a monthly volume of 5-8 tons of sheet processed in-house instead of subcontracted, the investment is recovered in 18-30 months under current Romanian market conditions.

The additional margin comes from three directions: the saving compared with subcontracting, offering cutting services to local external clients (1.2-1.8 EUR/m at the level of the Romanian market in 2026) and reducing delivery times to end clients by 40-60%, which allows premium prices on urgent orders.

Why choose LAZIRON for a laser cutting machine with exchangeable table

LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price any serious workshop can sustain, not just large factories with multi-million-euro CAPEX budgets.

• Affordable price for a dual-table system — the critical components are those used by premium manufacturers, but the LAZIRON package costs 30-40% less than European alternatives.
• 120-month warranty — for the machine body and critical mechanical components, according to the configuration, contract and operating conditions.
• Free 24/7 technical support — with direct access to LAZIRON engineers and an online platform with operational guides.
• Free pre-delivery inspection — with a complete test of the table exchange cycle and an acceptance report.
• European funds compatibility — it meets the requirements of PNRR, ERDF and national industrial digitalization funds.
• Standards-compliant components — the fiber source meets the reliability specifications of the world's leading manufacturers.

The fiber laser source in the standard configuration meets the reliability specifications set by the leaders of the laser industry, with a declared lifetime of over 100,000 operating hours.

See the entire LAZIRON range of metalworking equipment to compare the models and request a personalized offer.

The LAZIRON E laser cutting machine with exchangeable table turns cutting into a real competitive advantage: premium-level precision, sustained productivity and an affordable investment for any workshop that wants to grow without doubling its fixed cost structure.
